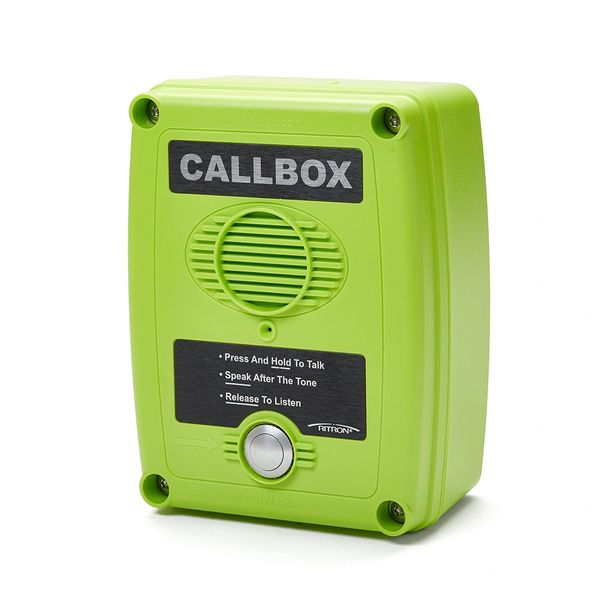

RQX-117 VHF ANALOG, 150-160 MHZ, Part 90 Freqs, Hi-Viz Green Housing 700mW 2 Watts yes
$703.00
$699.00
| Models | Description –Analog, Conventional | Tx Pwr Using 3 D-Cells |
TX Pwr Using Ext 12VDC Pwr |
Includes Built-In Relay,Stored-Voice Msg,Sensor Switch Inputs |
| RQX-111M | VHF MURS | 700mW | 2 Watts | no |
| RQX-111M-BLK | VHF MURS | 700mW | 2 Watts | no |
| RQX-117M | VHF MURS | 700mW | 2 Watts | yes |
| RQX-117M-BLK | VHF MURS | 700mW | 2 Watts | yes |
| RQX-117 | VHF, 150-160 MHZ, Part 90 Freqs, Hi-Viz Green Housing | 700mW | 2 Watts | yes |
| RQX-117-BLK | VHF, 150-160 MHZ, Part 90 Freqs, Black Housing | 700mW | 2 Watts | yes |
| RQX-411 | UHF, 450-470 MHZ, Part 90 Freqs, Hi- Viz Green Housing | 700mW | 2 Watts | no |
| RQX-411-BLK | UHF, 450-470 MHZ, Part 90 Freqs, Hi-Viz Black Housing | 700mW | 2 Watts | no |
| RQX-417 | UHF, 450-470 MHZ, Part 90 Freqs, Hi-Viz Green Housing | 700mW | 2 Watts | yes |
| RQX-417-BLK | UHF, 450-470 MHZ, Part 90 Freqs, Black Housing | 700mW | 2 Watts | yes |
- RF Channels:1 Channel Analog(12.5KHz)
- Signaling: CTCSS & DCS Encode/Decode, DTMF Encode/Decode, SelCal Encode/Decode, 2-Tone Decode Only
- Dimensions: 7” H x 5” W x 3” D
- Weight: 2.75 lbs
- Enclosure Material: Gasket Sealed, High-Impact Polycarbonate
- Colors: Black or High-Viz Green
- Environmental: Splash resistant, shock and vibration per Ritron test
- Operating Temperature: -20°C to +55°C (-4°F to 131°F) Battery rating. At 0°C the capacity is < 50% rated) Talk range will decrease at low temperatures when operating on alkaline batteries.
- Programming: Field programming capability of limited parameters. Full programming capability using internal USB Connector used for full PC Programming.
-
Built-in Remote Control Relay(7 Series): Can be used to remotely control gates, doors or strobe light. (7 Series) Relay switch is controlled when callbox receives the pre-programmed selective signaling command code.
- SPDT, 3A, 125VAC/30VDC – Normally Open or Normally Closed (NO Default). Modes of Operation: Momentary or Toggle, On/Off.
- Aux Sensor Monitoring Input : Optional sensors used to detect motion, gate movement, vandal/tamper or vehicle presence can be connected to the callbox using the sensor input.
- Sensor input responds to an Open or Closed switch. Callbox will send either an alarm tone or a recordable voice message when optional switch/sensor detects a change.
- Can also be programmed to automatically turn callbox ON and transmits recordable voice message or alarm tone to radios monitoring callbox activity.
- Adjustable Speaker Volume: Adjustable 20% to 100%
- Automatic Turn-Off Feature: Conserves batteries. Selectable turn-off times will automatically turn callbox off after a set period of inactivity on the radio channel. Auto Turn-OFF feature must be enabled when using battery only power.
- Listen-In Feature: Callbox can be selectively paged to allow remote monitoring of audio in the vicinity of the callbox.
- Busy Channel TX Inhibit: Prevents Callbox from transmitting if someone else is using the radio channel.
- Recordable Voice Messages: Greeting Message/Send Call Alert Message/Sensor ON/Sensor OFF/ Low Battery Message/Send Power Fail Message/Auto “Re-Send” - Selectable 0-5 times.
- Battery Life: 3 D-Cell Alkaline Batteries: Number of Transmissions: Approximately 6,000 based on a duty cycle of: 3 Seconds Receive, 3 Seconds Transmit, 10 Seconds Standby
